LED 高亮度燈箱
紅外燈箱
紅外燈箱
- Halogen type light sources are the most common light source to process images.
- Use for common illumination, museum and inspection illumination.
- Built-in an over current cutoff function.
- When the temperature around the lamp passes a safe level (70 °C) the lamp will turn off.
- Variety of function and options are availiable.

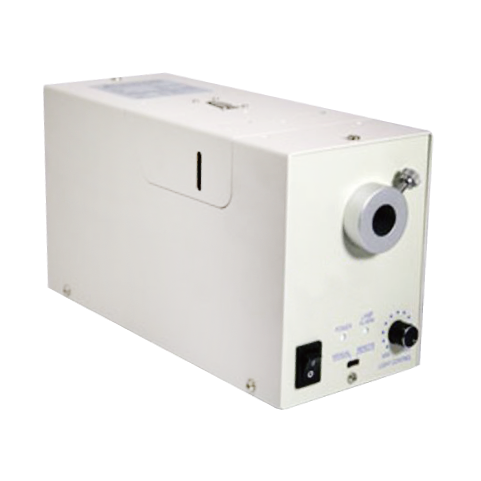

| Model | ILH-UW-100D-IR | ILH-UW-100-IR |
| Power Supply | AC 100 ~ 120V / 180 ~ 250V 50/60Hz Auto select | |
| Power consumption | 135W Max . | |
| Lamp | Halogen Lamp 12V 100W-LM-100-IR(12V-100W) | |
| Lamp Service Life | 1,000Hr Max. at Full ran ge | |
| Light Intensity Control | 0 ~ 100% | |
| Operating Temperature | 0 ~ 40 °C (20 ~ 80%R H) | |
| Fuse | AC 250V 3A | |

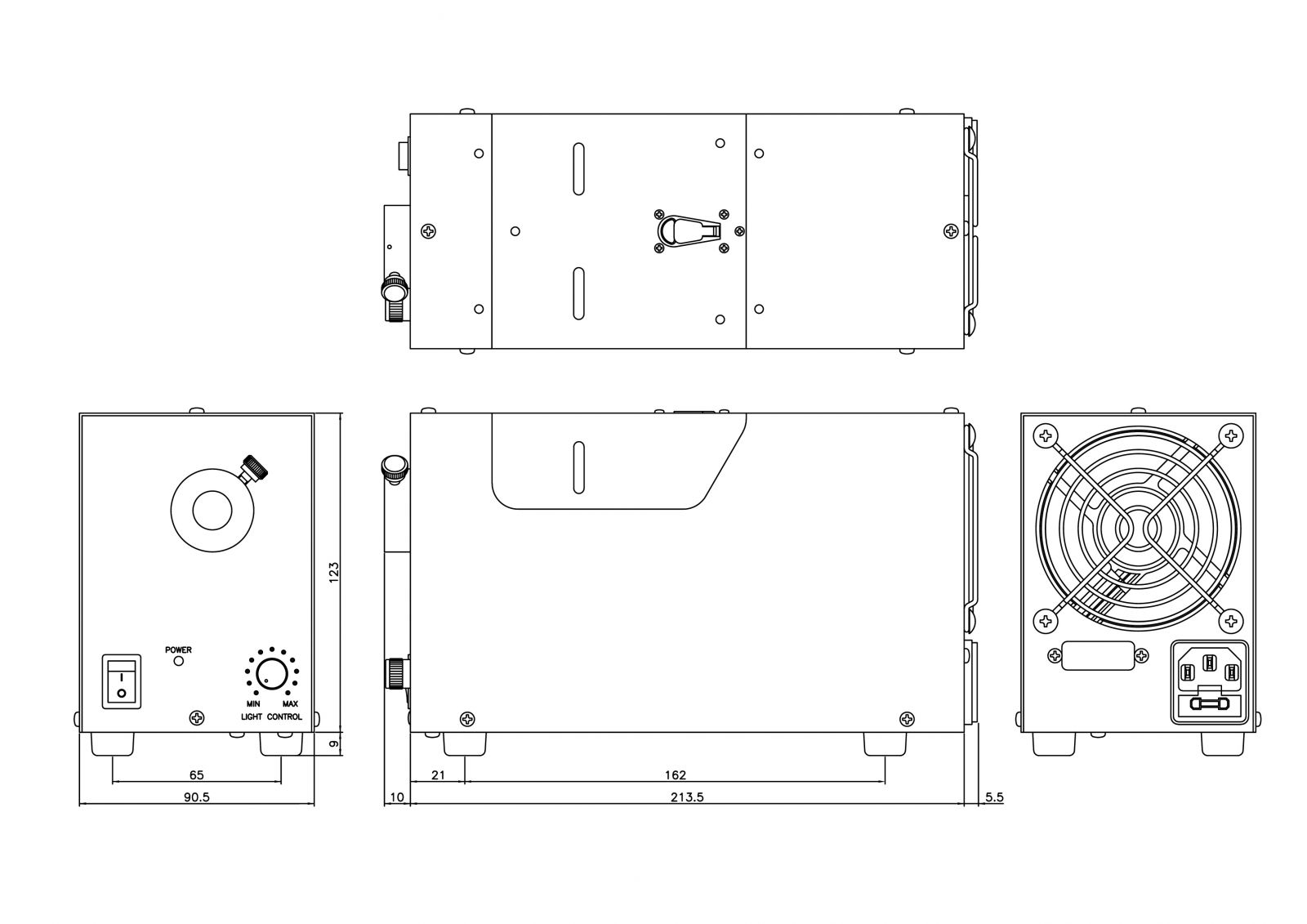

| Dimensions | 90 X 131 X 230 | |
| Weight | 2.0 Kg | |
| Model | ILH-UW-100D-IR | ILH-UW-100-IR |
| External ANALOG Control | X | X |
| External DIGITAL Control | O (8 B it) | X |
| External VOLUME Control | X | X |
| External On /Off | O | X |
| LAMP Fail Signal Out | O | X |
| Over current Signal Out | X | X |
| Over temperature Signal Out | X | X |
