LED Lighting Series

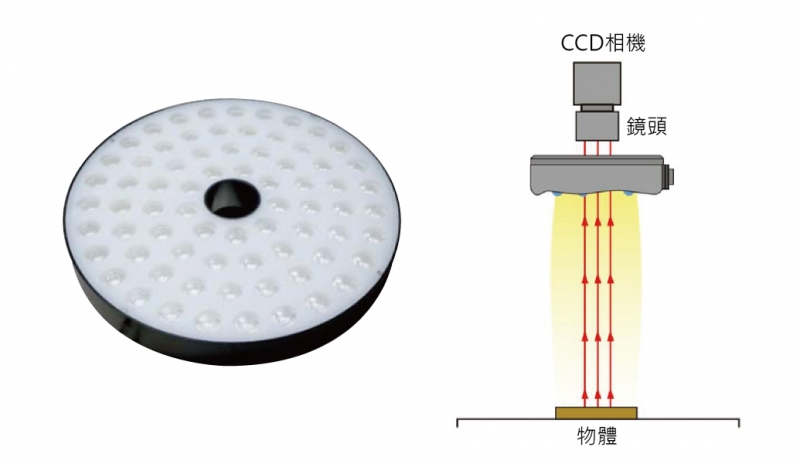

High Illumination Ring Light
High Illumination Ring Light
- High power LED high-density layout, special lens design, high brightness
- Suitable for long-distance lighting, medical industry lighting, high-speed flying lighting,large-scale object detection, etc.

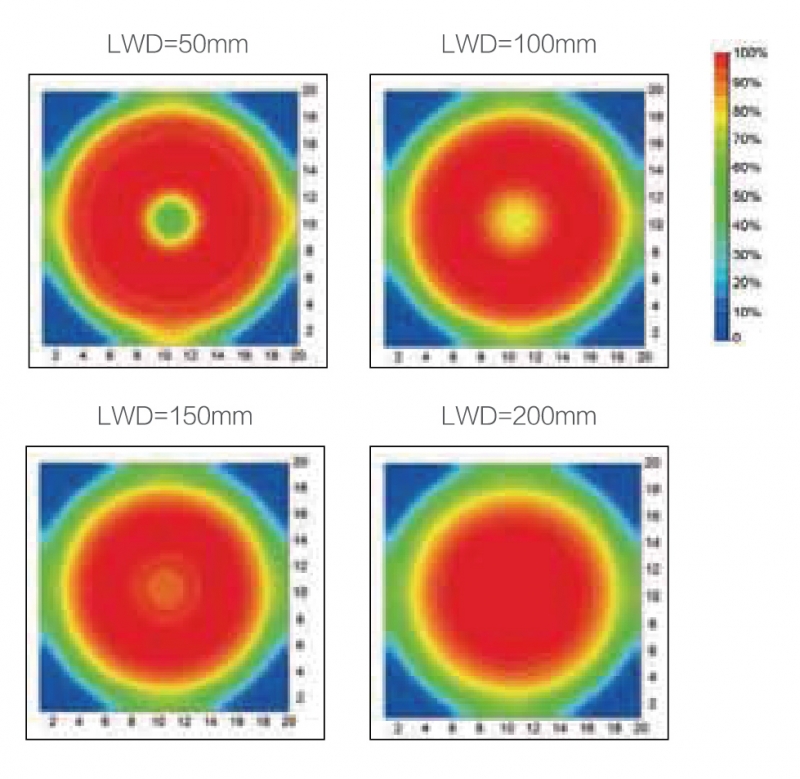

illumination changes with distance
ILL-FHR26040-R/G/B/W

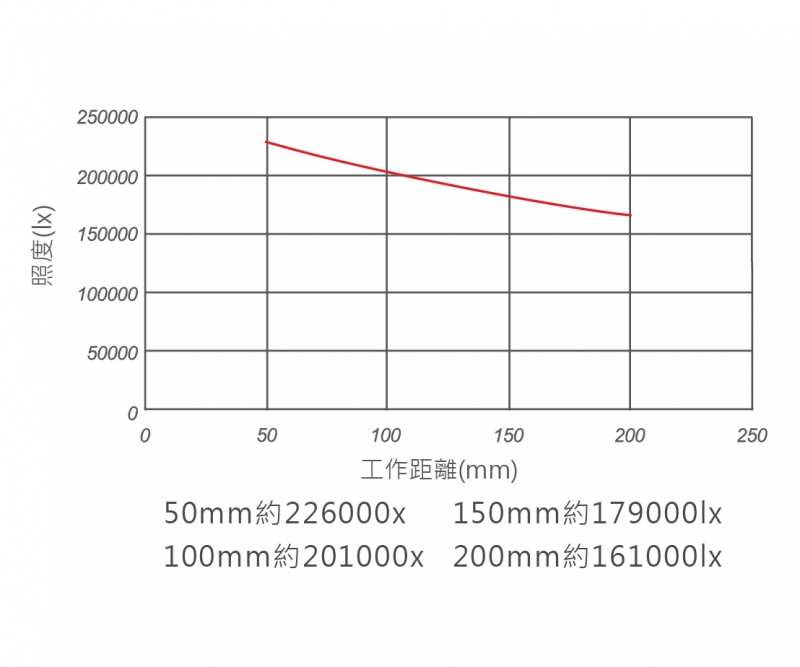

working distance and illumination
ILL-FHR26040-R/G/B/W

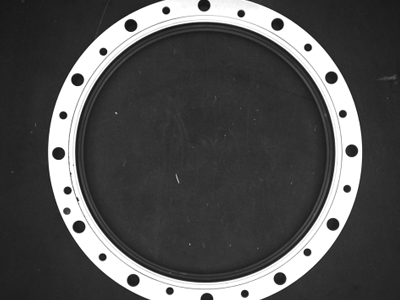

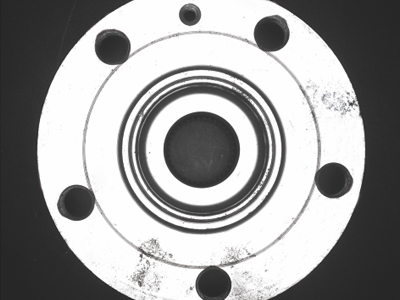

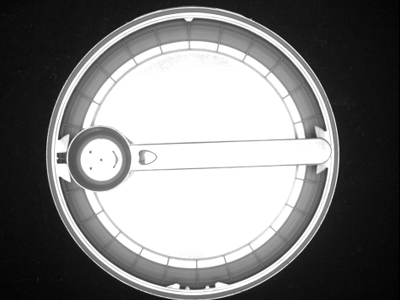

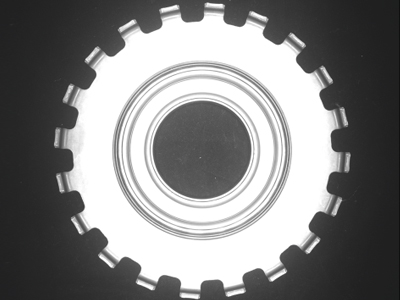

應用
| ILL-FHR26040-R | ILL-FHR26040-R | ILL-FHR26040-W | ILL-FHR26040-B |
 |
 |
 |
 |
| 齒輪缺失檢測及同心圓檢測(工作距離1m) | 齒輪缺失檢測及同心圓檢測(工作距離1m) | 金屬件小孔定位(工作距離1m) | 汽車表面小孔定位及鏽斑檢測(工作距離1m) |

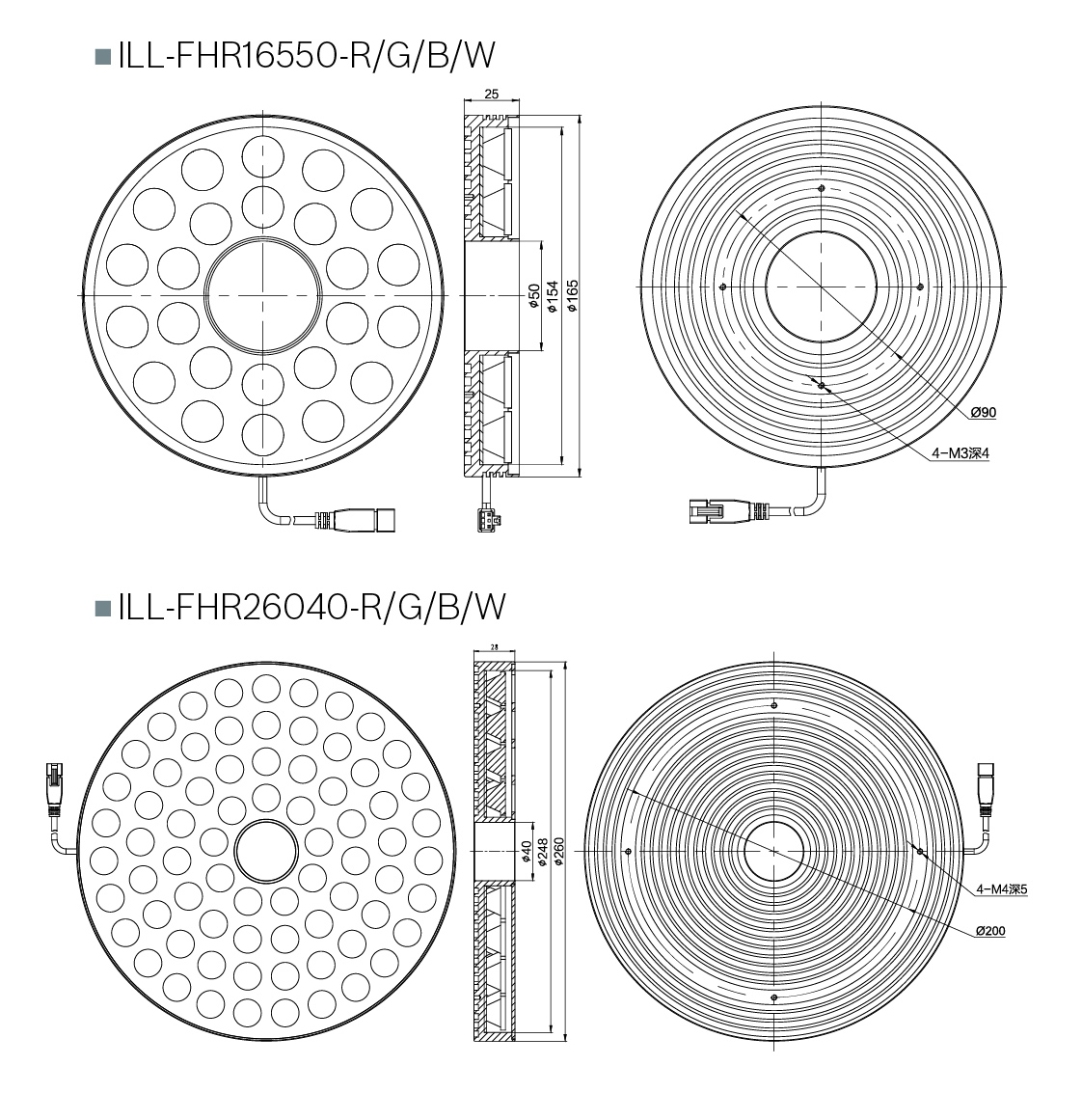

High Illumination Ring Light
| Model | voltage | power | outer diameter mm | inner diameter mm | adapter controller | |||
|
R |
W | G | B | |||||
| ILL-FHR16550-R/G/B/W | 24V | 21.6W | 20W | 17W | 26.4W | 165 | 50 | 單Channel<30W 總Channel加總<50W 可用以下: ILL-DP2454-2CR-1 ILL-DP2454-4CR-1 ILL-DP2450-2C |
| ILL-FHR26040-R/G/B/W | 24V | 55.2W | 72W | 260 | 40 | ILL-FCV-15024系列 | ||
