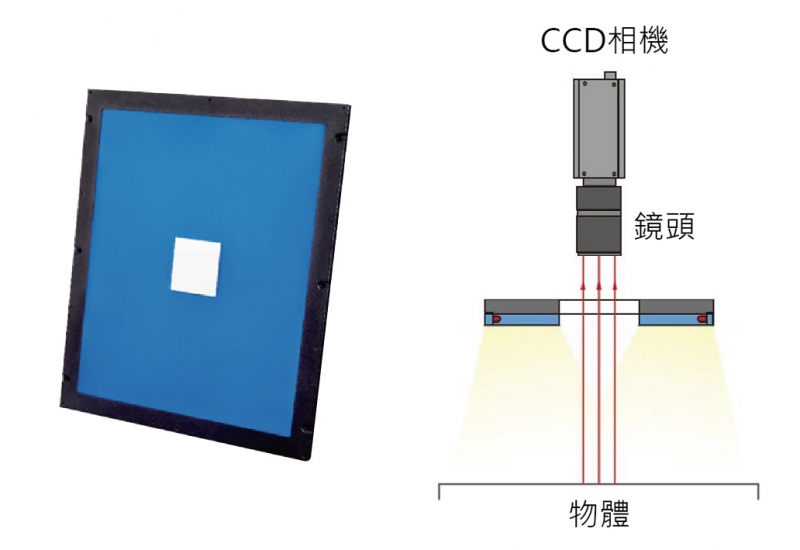

Perforated Backlight

Large format parallel high uniform lighting.
Light and thin design, hole size, shape, size can be customized.
It is suitable for outer contour edge positioning detection, surface defect detection of transmissive objects, positioning of large-format objects, presence or absence, identification detection, etc.

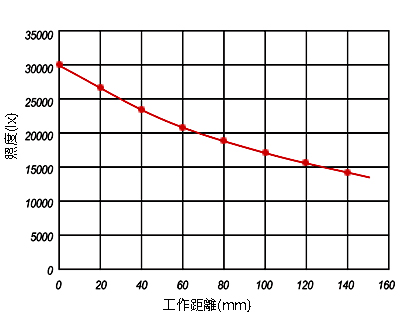

illumination changes with distance
ILL-FBD350350-R/G/B/W

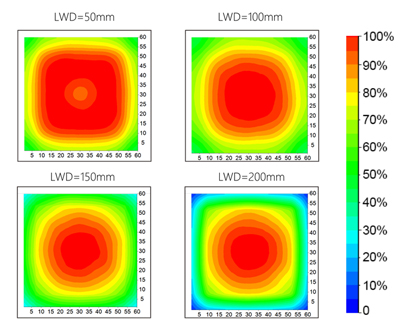

working distance and illumination distribution
ILL-FBD350350-R/G/B/W

Imaging Case

ILL-FBD250200-W

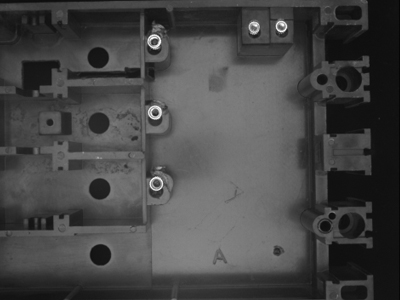

螺母有無檢測

ILL-FBD250200-W

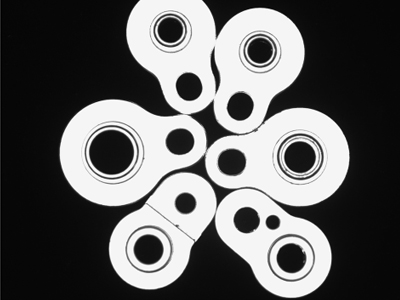

金屬件定為級檢測

ILL-FBD350350-W

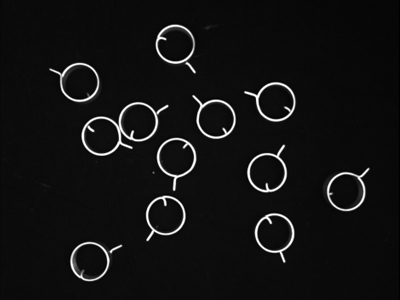

彈簧正反檢測

ILL-FBD350350-W

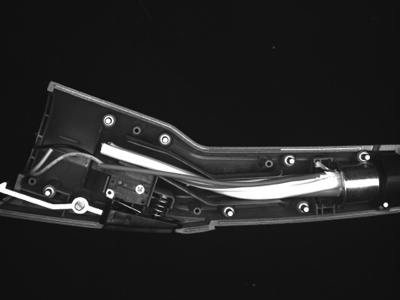

鉚釘定位檢測

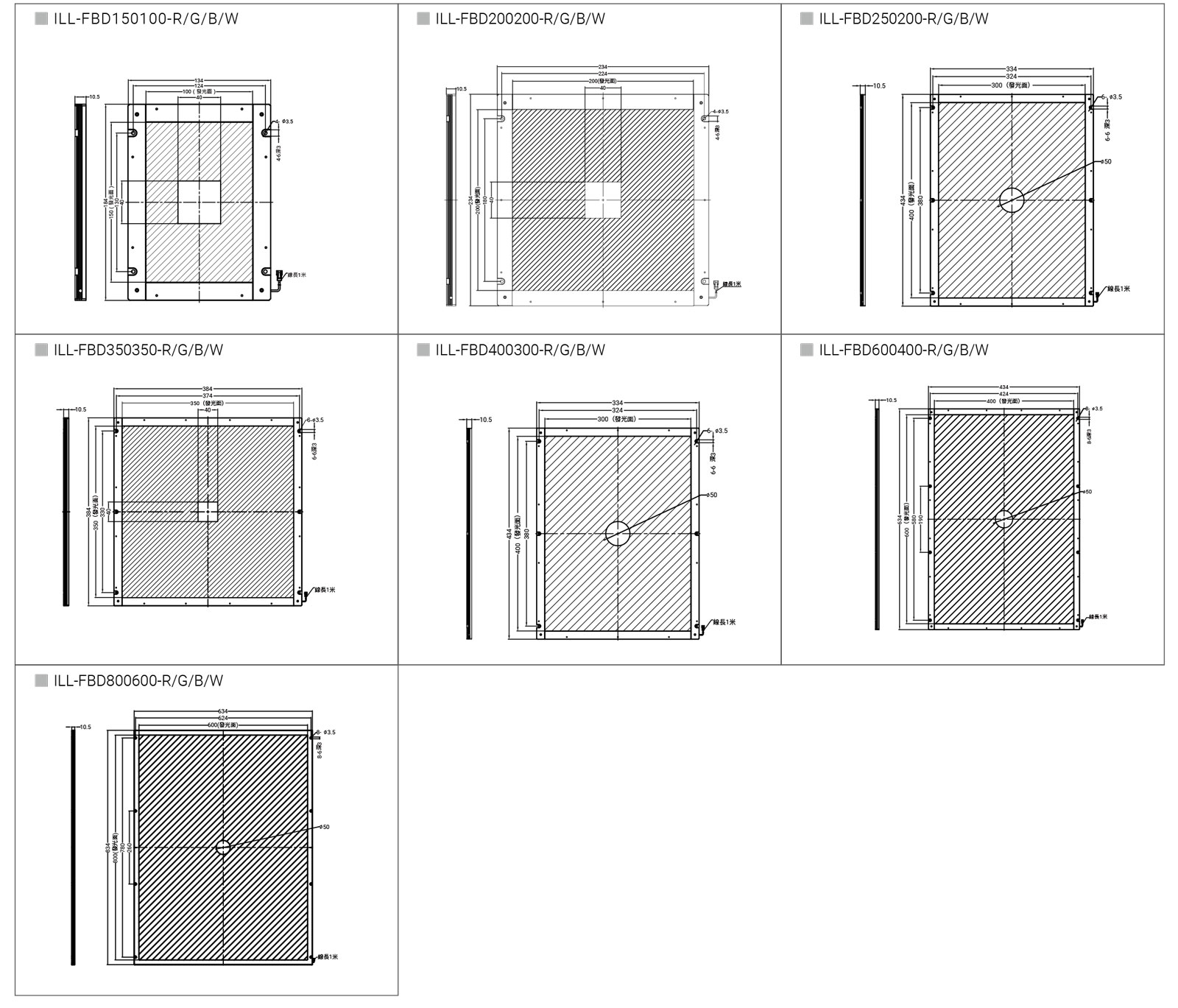

Perforated Backlight

Model	voltage	power		Length mm	width mm	Height mm	adapter controller
Model	voltage	R	W G B	Length mm	width mm	Height mm	adapter controller
ILL-FBD150100-R/G/B/W	24V	15W	18W	184	134	10.5	單Channel<30W, 總Channel 加總<50W 可用以下控制器 ILL-DP2454-2CR-1 ILL-DP2454-4CR-1 單Channel>30W, * 需使用以下控制器 ILL-FCV 恆壓系列
ILL-FBD200200-R/G/B/W	24V	20.6W	30W	234	234	10.5
ILL-FBD250200-R/G/B/W	24V	22.5W	32.4W*	284	234	10.5
ILL-FBD350350-R/G/B/W	24V	28.3W	43.2W*	384	384	10.5	單Channel>30W, * 需使用以下控制器 ILL-FCV-15024 系列
ILL-FBD400300-R/G/B/W	24V	33.2W*	45W*	434	334	10.5
ILL-FBD600400-R/G/B/W	24V	38.8W*	55W*	634	434	10.5
ILL-FBD800600-R/G/B/W	24V	54W*	60W*	834	634	10.5	單Channel>30W, * 需使用以下控制器 ILL-FCV-15024 系列

※提供各尺寸光源客製
