Collimated Backlight

Add brightening film to improve the brightness of light
Large scale uniform lighting, flexible size
With good light directivity, it is suitable for high-precision dimension measurement
It is suitable for workpiece spacing measurement, high-precision dimension measurement, metal surface foreign body detection, transmissible object surface defect detection, etc.

illumination changes with distance
ILL-FBP250200-R/G/B/W

working distance and illumination distribution
ILL-FBP250200-R/G/B/W

Imaging Case

ILL-FBP5050-W

鍵盤金手指間距檢測

ILL-FBP5050-W

芯片尺寸檢測

ILL-FBP110110-B

醫用透明塑膠料件毛邊檢測

ILL-FBP110110-W

鏡片定位檢測

Collimated Backlight

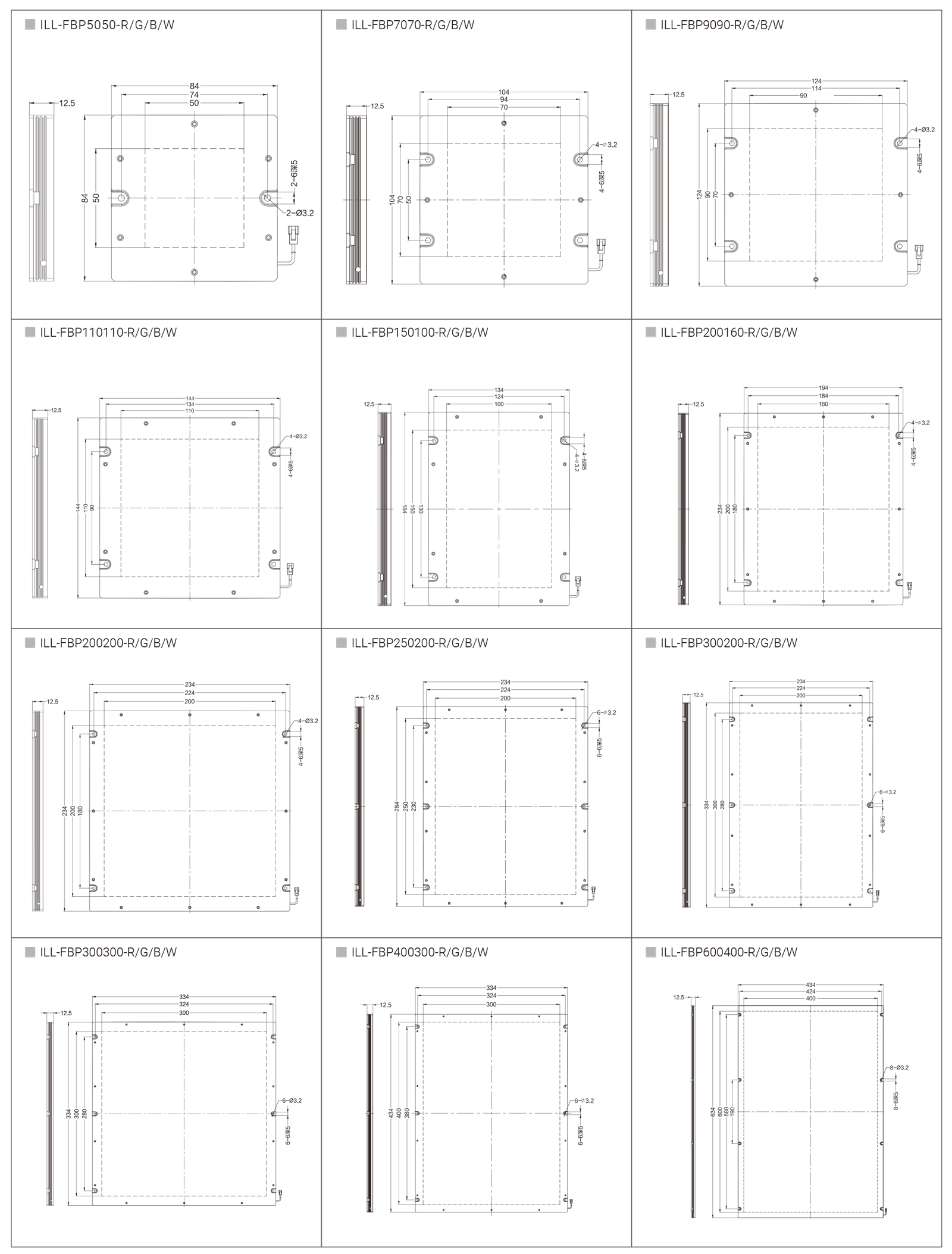

Model	voltage	power		Length mm	width mm	Height mm	adapter controller
Model	voltage	R	W G B	Length mm	width mm	Height mm	adapter controller
ILL-FBP5050-R/G/B/W	24V	5.2W	9W	84	84	12.5	單Channel<30W, 總Channel 加總<50W 可用以下控制器 ILL-DP2454-4CR-1 ILL-DP2454-2CR-1 單Channel>30W, * 需使用以下控制器 ILL-FCV 恆壓系列
ILL-FBP7070-R/G/B/W	24V	8.2W	8.8W	104	104	12.5
ILL-FBP9090-R/G/B/W	24V	11W	13.2W	124	124	12.5
ILL-FBP110110-R/G/B/W	24V	11.5W	17.5W	144	144	12.5
ILL-FBP150100-R/G/B/W	24V	15W	18W	184	134	12.5
ILL-FBP200160-R/G/B/W	24V	19.1W	28W	234	194	12.5
ILL-FBP200200-R/G/B/W	24V	20.6W	30W*	234	234	12.5
ILL-FBP250200-R/G/B/W	24V	22.5W	32.4*	284	234	12.5
ILL-FBP300200-R/G/B/W	24V	23.5W	35.5W*	334	234	12.5
ILL-FBP300300-R/G/B/W	24V	26W	36W*	334	334	12.5	單Channel>30W, * 需使用以下控制器 ILL-FCV-15024 系列
ILL-FBP400300-R/G/B/W	24V	32.3W*	45W*	434	334	12.5
ILL-FBP600400-R/G/B/W	24V	38.8W*	55W*	634	434	12.5

※提供各尺寸光源客製
