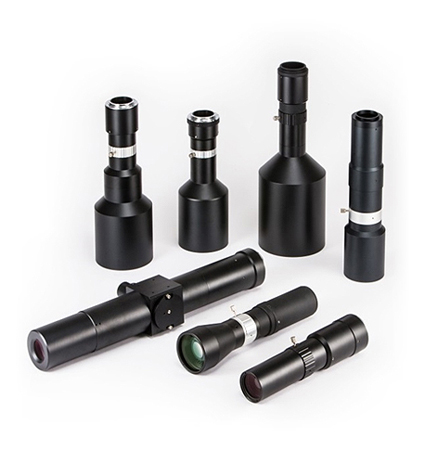

TCL-25M Telecentric Lens
TCL-25M Telecentric Lens
- Can support up to 25M Sensor which is 32mm diagonal length.
- Compatible with 12M Sensor according to the customer requirement.
- High Resolution lens & No perspective error over the whole F.O.V.
- Iris diaphragm adapted for adjusting D.O.F.
- Possible to change the mount according to Camera

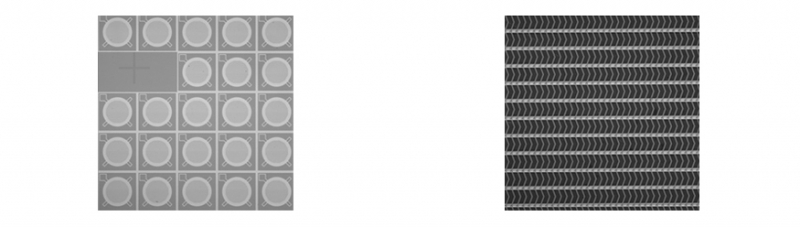

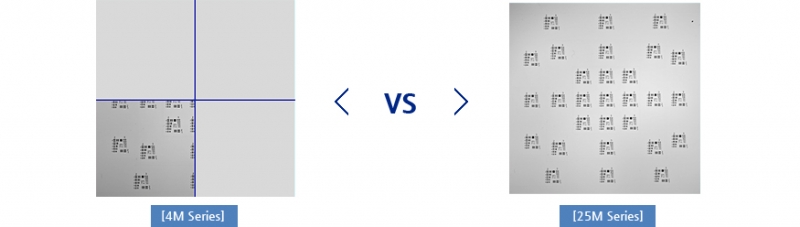

This lens is good for large area inspection which can meet wide F.O.V. It can get about 4X bigger image than 4M lens, Thus, it is possible to reduce tact time and cost and increase the productive efficiency
This series is really good for precise measurement like Wafer inspection(IC marking, reed and defect, scratch), SMT&PCB (via hole, component height& depth) and LED package (Wire bonding, die and chip size, defect) applications. It is possible to apply various applications those are requested magnification and W.D

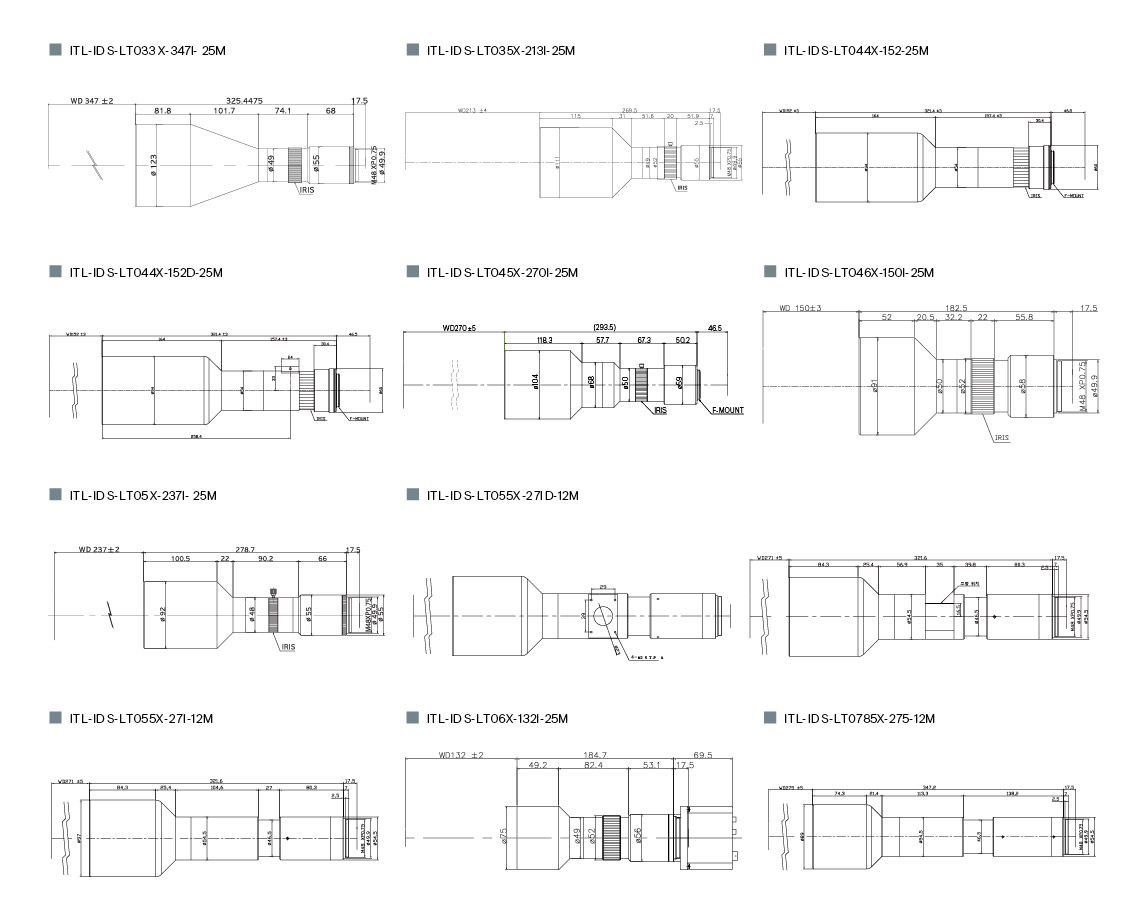

| Model | Mag | WD(mm) | Resolution(µm) | N . A . | F / # | D.O.F (mm) |
Telecentricity
(Degree)
|
C C D | Mount |
|---|---|---|---|---|---|---|---|---|---|
| ITL-IDS-LT0153X-220-25M | 0.153X | 220 | 35.3 | 0.01 | 8 | 12.3 | 0.06 | 25M(32mm) | M42 |
| ITL-IDS-LT033X-347I-25M | 0.33X | 347 | 16. 8 | 0. 02 | 8.25 | 2.7 | 0.03 | 25M (32mm) | M48 |
| ITL-IDS-LT035X-213I-25M | 0.35X | 213 | 14.4 | 0.0233 | 7.5 | 2.2 | 0.03 | 25M (32mm) | M48 |
| ITL-IDS-LT044X-152D-25M | 0.44X | 152 | 11.9 | 0.028 | 8 | 1.5 | 0.04 | 25M (32mm) | F |
| ITL-IDS-LT044X-152DI-25M | 0.44X | 152 | 11.9 | 0.028 | 8 | 1.5 | 0.04 | 25M (32mm) | F |
| ITL-IDS-LT044X-152I-25M | 0.44X | 152 | 11.9 | 0.028 | 8 | 1.5 | 0.04 | 25M (32mm) | F |
| ITL-IDS-LT044X-152-25M | 0.44X | 152 | 11.9 | 0.028 | 8 | 1.5 | 0.04 | 25M (32mm) | F |
| ITL-IDS-LT045X-270I-25M | 0.45X | 270 | 9.3 | 0.036 | 6.25 | 1.1 | 0.03 | 25M (32mm) | F |
| ITL-IDS-LT046X-150I-25M | 0.46X | 150 | 10.2 | 0.033 | 7 | 1.2 | 0.03 | 25M (32mm) | M48 |
| ITL-IDS-LT05X-157DI-25M | 0.5X | 157 | 10.7 | 0.031 | 8 | 1.1 | 0.04 | 25M (32mm) | F |
| ITL-IDS-LT05X-157/D-25M | 0.5X | 157 | 10.7 | 0.031 | 8 | 1.1 | 0.04 | 25M (32mm) | F |
| ITL-IDS-LT05X-157I-25M | 0.5X | 157 | 10.7 | 0.031 | 8 | 1.1 | 0.04 | 25M (32mm) | F |
| ITL-IDS-LT05X-237I-25M | 0.5X | 237 | 8.4 | 0.04 | 6.25 | 900um | 0.03 | 25M (32mm) | M48 |
| ITL-IDS-LT055X-200I-25M | 0.55X | 200 | 9 | 0.04 | 7.4 | 1 | 0.03 | 25M (32mm) | F |
| ITL-IDS-LT06X-132I-25M | 0.6X | 132 | 7 | 0.048 | 6.25 | 625um | 0.03 | 25M (32mm) | M48 |
| ITL-IDS-LT08X-240I-25M | 0.8X | 240 | 6.3 | 0.053 | 7.5 | 421um | 0.03 | 25M (32mm) | F |
| ITL-IDS-LT082X-270I-25M | 0.82X | 270 | 6.1 | 0.0546 | 7.5 | 401um | 0.03 | 25M (32mm) | F |
| ITL-IDS-LT092X-170I-25M | 0.92 X | 170 | 5.2 | 0 .064 | 7.2 | 306um | 0.04 | 25M (32mm) | M48 |
| ITL-IDS-LT12X-155I-25M | 1.2X | 155 | 4.2 | 0.08 | 7.5 | 187um | 0.03 | 25M (32mm) | F |
| ITL-IDS-LT128X-125/D-25M | 1.28X | 125 | 4.7 | 0.071 | 9 | 197um | 0.03 | 25M (32mm) | F |
| ITL-IDS-LT128X-125DI-25M | 1.28X | 125 | 4.7 | 0.071 | 9 | 197um | 0.03 | 25M (32mm) | F |
| ITL-IDS-LT128X-125I-25M | 1.28X | 125 | 4.7 | 0.071 | 9 | 197um | 0.03 | 25M (32mm) | F |
| ITL-IDS-LT135X-110I-25M | 1.35X | 110 | 4.5 | 0 .075 | 9 | 178um | 0.03 | 25M (32mm) | F |
| ITL-IDS-LT15X-100I-25M | 1.5X | 100 | 4.47 | 0 .075 | 10 | 160um | 0.03 | 25M (32mm) | F |
| ITL-IDS-LT30X-78/D-25M | 3.0X | 78 | 3.36 | 0.1 | 15 | 60um | 0.09 | 25M (32mm) | F |
| ITL-IDS-LT30X78D-25M-V2-M58 | 3.0X | 78 | 3.4 | 0.1 | 15 | 60um | 0.09 | 25M(32mm) | F |
