TCL-UHR Telecentric Lens
There is an inquiry for the small pixel size camera which is required for precision and high accuracy in the machine applications. Thus lens quality also have to be maintained to support the small pixel size camera. SPO designed the UHR lenses to support for the small pixel size camera.
UHR lenses are good for precise and accurate measurement by performing the more high contrast and resolution than standard HR lenses.
Customer can get the high-quality and contrast images by adaption small size pixel camera and uniform coaxial illumination over the whole F.O.V.

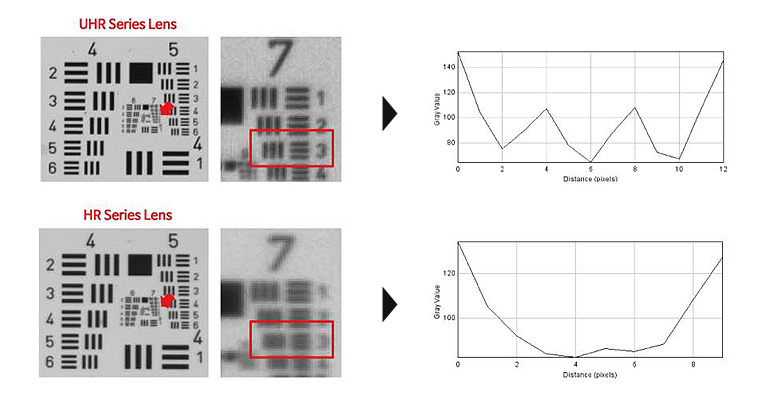

Comparison for image contrast
TCL-UHR Series have very low F/# and High N.A where High contrast and High quality image SPO have various UHR lens according to magnification and W.D.

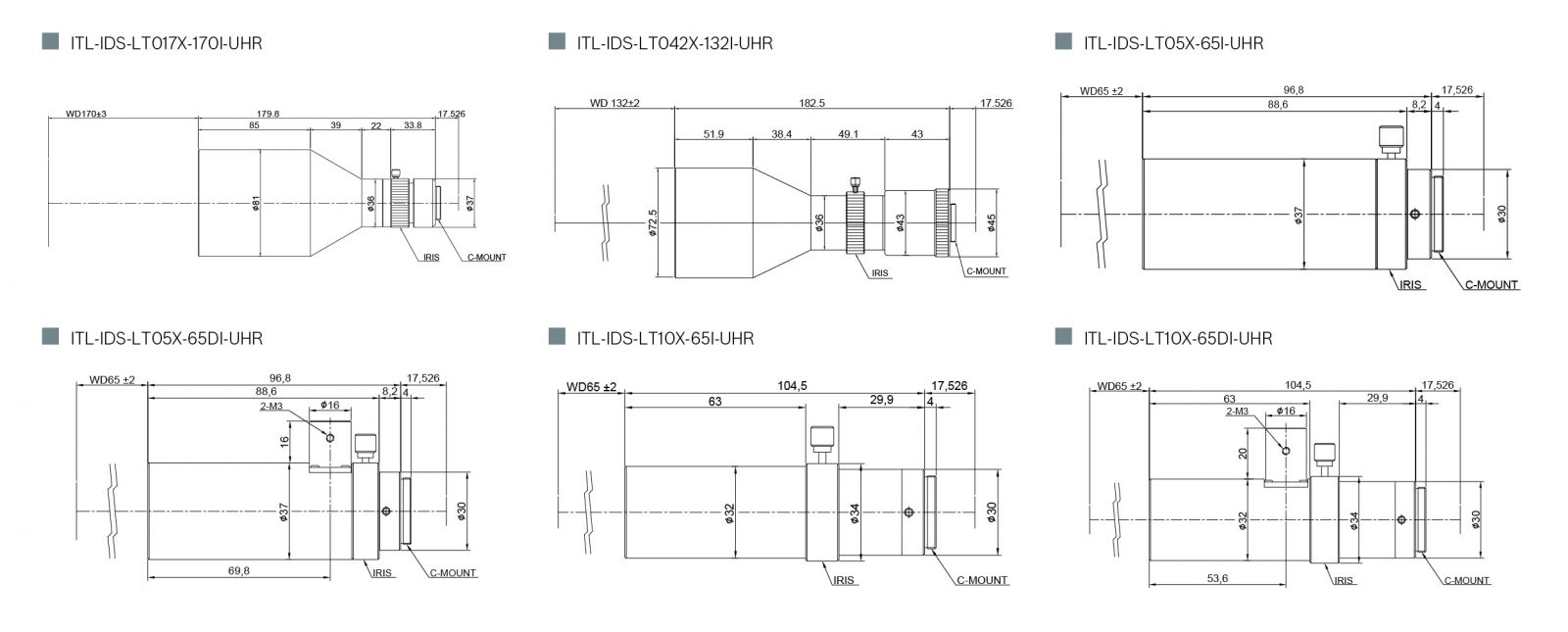

產品型號 | 倍率 | WD(mm) | 解析度 (µm) | N . A . | F / # | 景深 (mm) | Telecentricity (Degree) |
C C D | Mount |
---|---|---|---|---|---|---|---|---|---|
ITL-IDS-LT017X-170I-UHR | 0.17X | 170 | 20 | 0.017 | 5 | 13.8 | 0.03 | 2/3"(11mm) | C |
ITL-IDS-LT10X-65DI-UHR | 1.0X | 65 | 3 | 0.11 | 4.5 | 360um | 0.04 | 2/3"(11mm) | C |
ITL-IDS-LT10X-65I-UHR | 1.0X | 65 | 3 | 0.11 | 4.5 | 360um | 0.04 | 2/3"(11mm) | C |
ITL-IDS-LT042X-132I-UHR | 0.42X | 132 | 7.3 | 0.0462 | 4.5 | 2 | 0.02 | 2/3"(11mm) | C |
ITL-IDS-LT05X-65DI-UHR | 0.5X | 65 | 6 | 0.0555 | 4.5 | 1.44 | 0.04 | 2/3"(11mm) | C |
ITL-IDS-LT05X-65I-UHR | 0.5X | 65 | 6 | 0.0555 | 4.5 | 1.44 | 0.04 | 2/3"(11mm) | C |
