PYRITE Series

PYRITE Series

  • Image circle 30mm - 100mm
  • 11 focal lengths: 28mm - 120mm
  • Covering a wide working distance range
  • Lenses for specific magnifications available
  • Very low distortion and high resolution
  • V38-Mount, compatible to the V38 mounting system
  • Initial apertures: F2.8 - F5.6

APPLICATIONS

  • Machine Vision
  • AOI (Automated Optical Inspection)
  • FPD/PCB inspection
  • Logistics

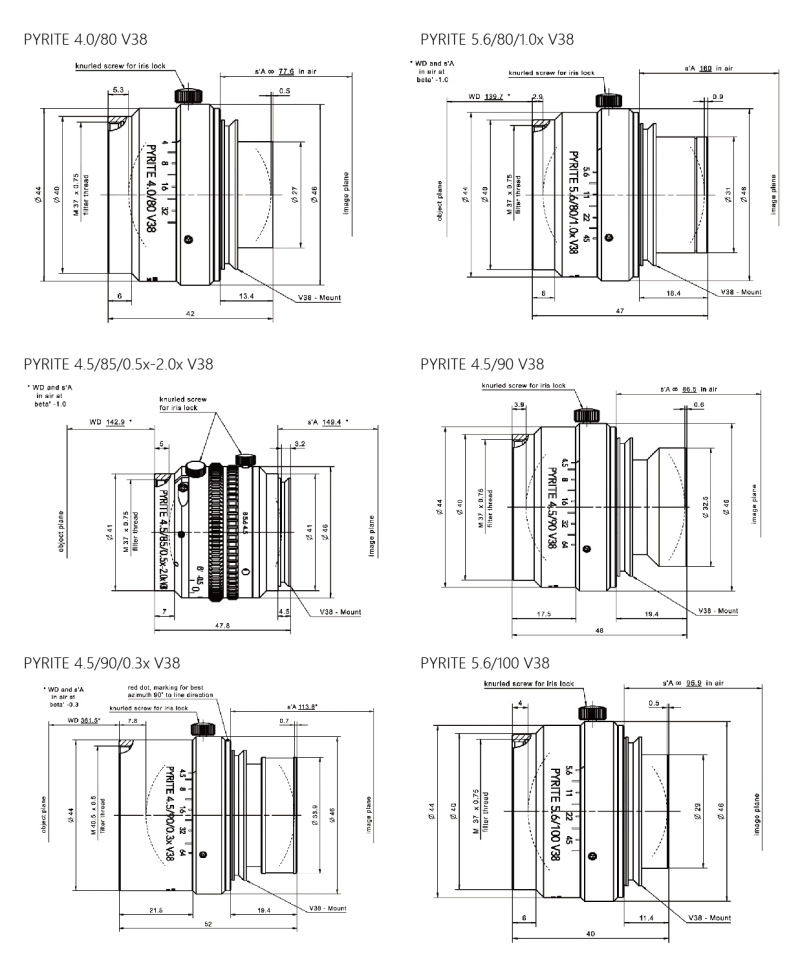

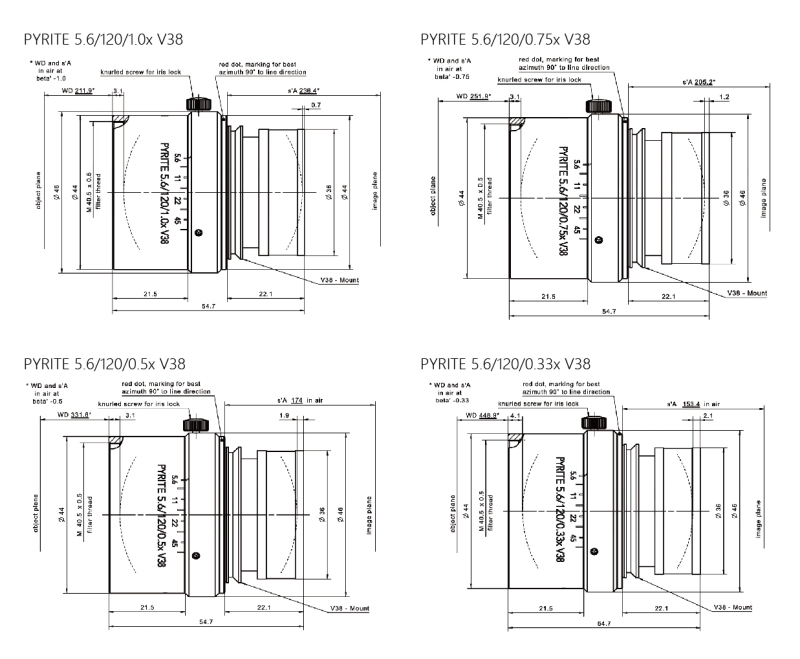

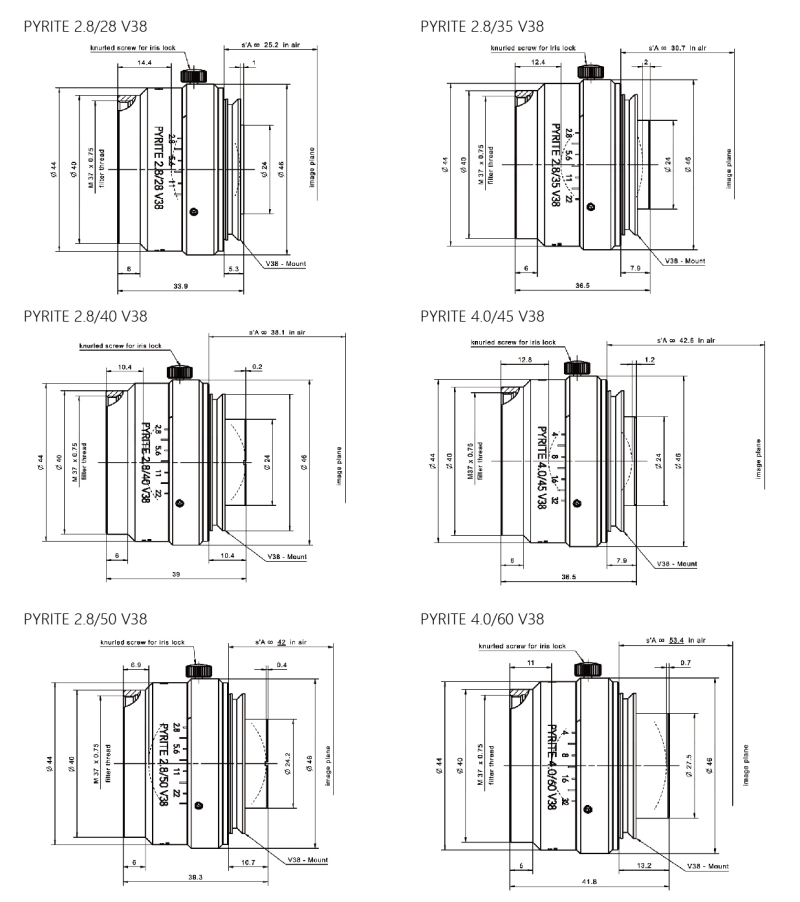

PYRITE Series

Model Mag WD(mm) Focal length(mm) F/# range Max. sensor size
(mm)		 Mount Filter Thread
PYRITE 2.8/28 V38 0.5X 61 ... ∞ 28 2.8-16 30 V38 M37 x 0.75
PYRITE 2.8/35 V38 0.5X 77 ... ∞ 35 2.8-22 30 V38 M37 x 0.75
PYRITE 2.8/40 V38 0.5X 97 ... ∞ 40 2.8-22 43.2 V38 M37 x 0.75
PYRITE 4.0/45 V38 0.5X 114 ... ∞ 45 4.0-32 43.2 V38 M37 x 0.75
PYRITE 2.8/50 V38 0.5X 127... ∞ 50 2.8-32 43.2 V38 M37 x 0.75
PYRITE 4.0/60 V38 0.5X 156 ... ∞ 60 4.0-32 62.5 V38 M37 x 0.75
PYRITE 4.0/80 V38 0.5X 214 ... ∞ 80 4.0-45 82 V38 M37 x 0.75
PYRITE 5.6/80/1.0x V38 1.0X 98 ... 222 80 5.6-45 100 V38 M37 x 0.75
PYRITE 4.5/85/0.5x-2.0x V38 1.0X 100 ... 228 85 4.5-8 62.5 V38 M37 x 0.75
PYRITE 4.5/90 V38 0.5X 246 ... ∞ 90 4.5-64 90 V38 M37 x 0.75
PYRITE 4.5/90/0.3x V38 0.3X 240 ... 967 90 4.5-64 90 V38 M40.5 x 0.5
PYRITE 5.6/100 V38 0.5X 283 ... ∞ 100 5.6-64 100 V38 M37 x 0.75
PYRITE 5.6/120/1.0x V38 1.0X 198 ... 228 120 5.6-64 90 V38 M40.5 x 0.5
PYRITE 5.6/120/0.75x V38 0.75X 228 ... 269 120 5.6-64 90 V38 M40.5 x 0.5
PYRITE 5.6/120/0.5x V38 0.5X 269 ... 411 120 5.6-64 90 V38 M40.5 x 0.5
PYRITE 5.6/120/0.33x V38 0.33X 409 ... 609 120 5.6-64 90 V38 M40.5 x 0.5
