High-resolution optical Lens 5M

High-resolution optical Lens 5M

  • High-resolution optical design for 3.45-μm pixel
  • Low distortion for better image quality
  • -10°C to +50°C operating temperature
  • Support extensive focal length line-up
  • 2/3'', 1/1.8'', 1/2'' sensor options suitable for diverse applications

High-resolution optical Lens 5M

Model Focal length 最佳倍率範圍 最佳WD範圍
(mm)
F/#   容許WD
(mm)
FOV (mm)
H V

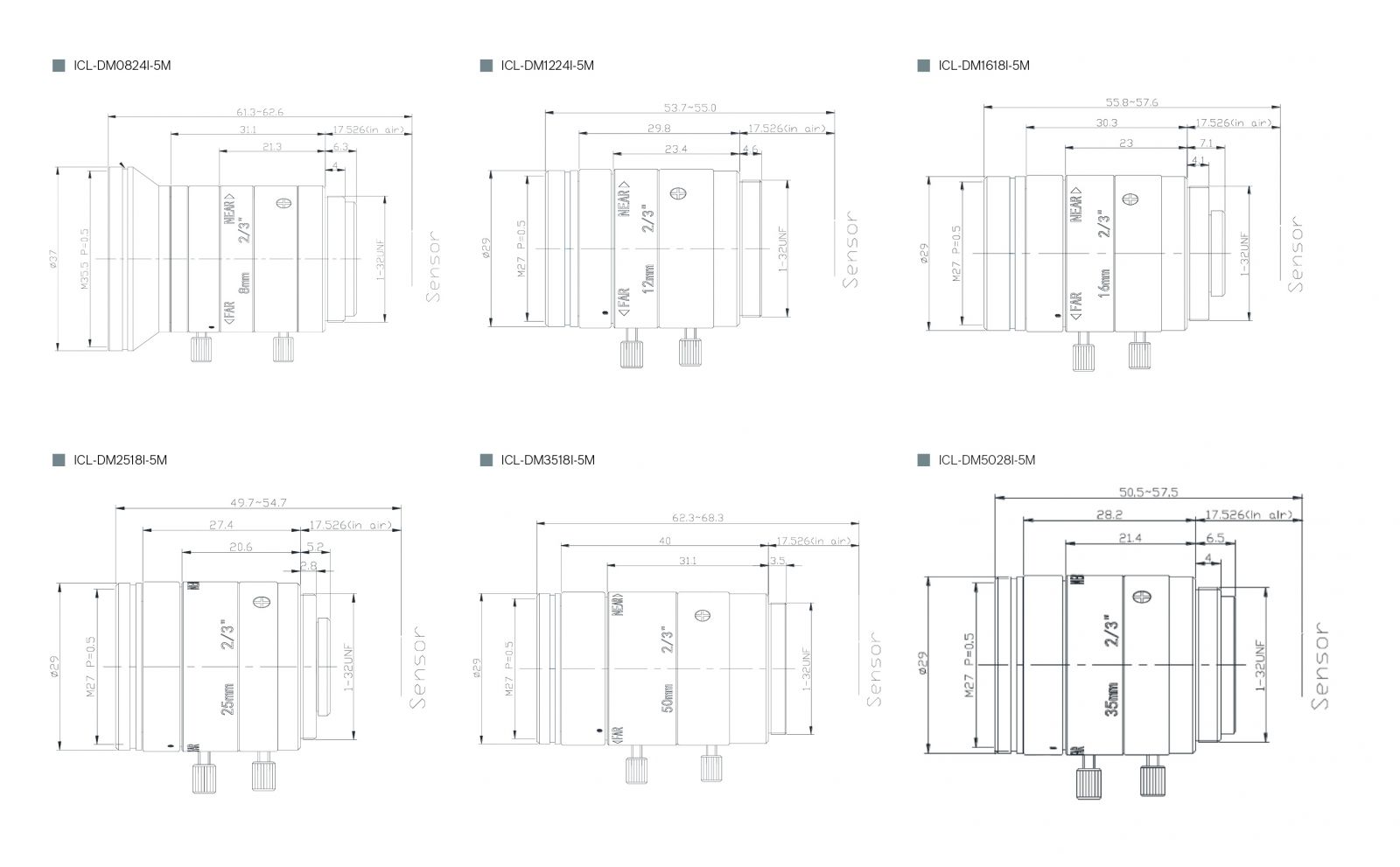

ICL-DM0824I-5M 8mm 0.053x - 0.019x 150 - 400 2.4 100 82.5 51.25
250 206.3 128.13
ICL-DM1224I-5M 12mm 0.048x - 0.03x 250 - 400 2.4 250 137.5 85.42
ICL-DM1618I-5M 16mm 0.017x - 0.04x 150 - 400 1.8 200 82.5 51.25
250 103.1 64.06
ICL-DM2518I-5M 25mm 0.083x - 0.05x 300 - 500 1.8 200 52.8 32.80
250 66.0 41.00
ICL-DM3518I-5M 35mm 0.4x - 0.088x 250 - 400 1.8 250 47.1 29.29
ICL-DM5028I-5M 50mm 0.126x - 0.07x 400 - 700 2.8 400 52.8 32.8
