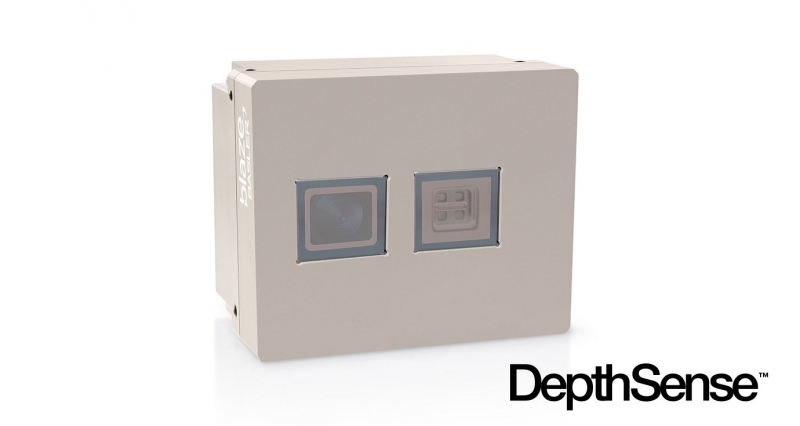

Basler blaze - Time-of-Flight (ToF) Camera

Universally usable time-of-flight camera with high precision for cost-efficient 3D imaging in real time

The Basler blaze industrial 3D camera operates on the pulsed Time-of-Flight principle. Its laser diodes (VCSEL) work in the NIR range (940 nm), generating 2D and 3D data in one shot with a multipart image, incorporating range, intensity and confidence maps.

The Basler blaze offers high resolution (VGA), precision via Sony’s innovative DepthSense™ sensor technology, plus powerful features at an attractive price, making the Basler blaze unique in the market.

• Outstanding 3D imaging with the latest Sony DepthSense™ IMX556PLR sensor technology
• Precise, almost millimeter-accurate optical measurement with the time-of-flight method

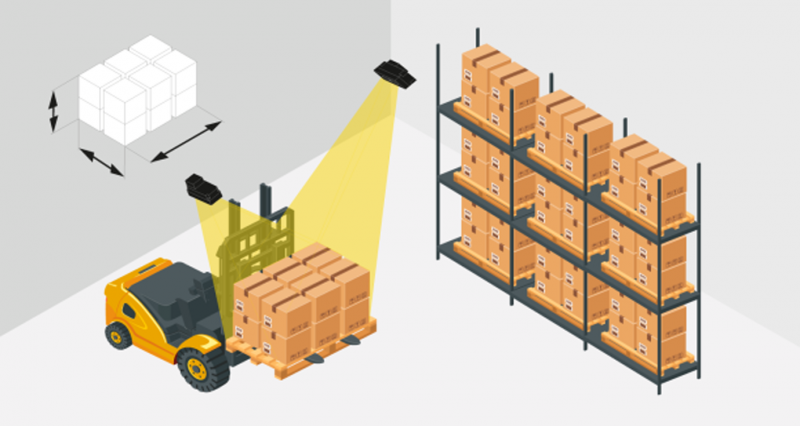

• Large measuring range, covering approximately two Euro pallets or a small car

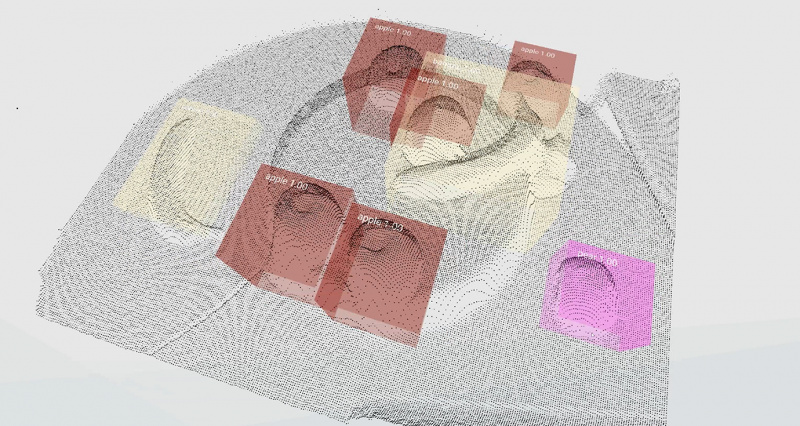

• Real-time streaming of pre-processed 3D point clouds and 2D intensity images
• Daylight capability and IP67 protection for stable results under difficult conditions
• Light and contrast independent
• Easy system integration thanks to compact design and Gigabit Ethernet
• User-friendly and platform-independent programming interface with sample programs
• Reliable operation in multi-camera systems without mutual interference
